CAMSHAFT PROCESSING MACHINE LINE UP
| SCM-2NC-B | Special-Purpose CNC Semi-Automatic 2-Head Milling Machine for Cam Shafts |
|---|---|

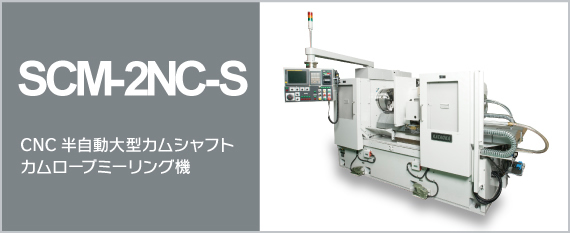

| SCM-2NC-S | Special-Purpose CNC Semi-Automatic Milling Machine for Large-Sized Cam Shafts & Cam Lobes |

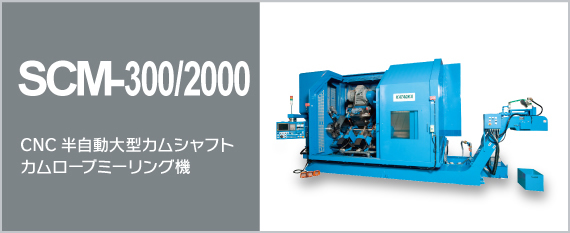

| SCM-300/2000 | CNC Semi-Automatic Milling Machine for Large-Sized Cam Shafts & Cam Lobes |

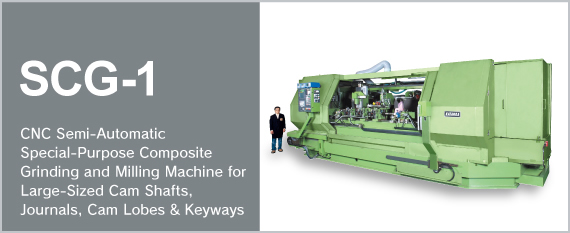

| SCG-1 | CNC Semi-Automatic Special-Purpose Composite Grinding and Milling Machine for Large-Sized Cam Shafts, Journals, Cam Lobes & Keyways |

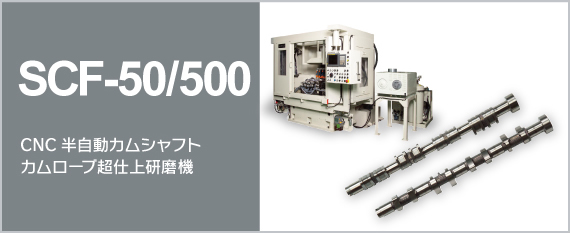

| SCF-50/500 | Special-Purpose CNC Semi-Automatic Super-Finishing Machine for Cam Shafts & Cam Lobe Stone Tools |
| Work O.D. | φ50 – 120 mm |
|---|---|
| Work length | φ50 – 2,300 mm |
| Work spindle motor output (servo motor) | 3kW (equivalent to 4 HP) |
| Work spindle motor speed | 1 – 10 min-1 |
| Work chuck | 15″hydraulic |
| Tail spindle motor output (servo motor) | 3kW (equivalent to 4 HP) |
| Tail spindle speed | 1 – 10 min-1 |
| Tail spindle chuck | 15″ (φ381mm) hollow, hydraulic 3jaws |
| Milling spindle motor output | 15kW (20 HP) |
| Milling spindle motor speed | 20 – 100 min-1 |
| Milling cutter O.D. | φ640 mm |
| Milling cutter width | 48 mm |
| Number of CNC axes | 7 (FANUC) |
| CNC programming | Auto programming on cam profile generating system |
| Work O.D. | φ50 – 120 mm |
|---|---|
| Work length | 1,000 – 2,500 mm |
| Work spindle motor output (servo motor) | 1.8kW (equivalent to 2.4 HP) |
| Work spindle motor speed | 1 – 10 min-1 |
| Work chuck | 15″ (φ381mm) hollow, hydraulic 3jaws |
| Tail spindle motor output (servo motor) | 1.8kW (equivalent to 2.4 HP) |
| Tail spindle speed | 1 – 10 min-1 |
| Tail spindle chuck | 15″hydraulic |
| Milling spindle motor output | 22kW (30 HP) |
| Milling spindle motor speed | 20 – 100 min-1 |
| Milling cutter O.D. | φ640 mm |
| Milling cutter width | 48 mm |
| Number of CNC axes | 5 (FANUC) |
| CNC programming | Auto programming on cam profile generating system |
| Work O.D. | φ44 – 320 mm |
|---|---|
| Work length | 100 – 2,050 mm |
| Work spindle motor output (servo motor) | 5.5kW (equivalent to 7.3 HP) |
| Work spindle motor speed | 1 – 20 min-1 |
| Work chuck | 20″ (φ508mm) hollow, hydraulic 3jaws |
| Milling spindle motor output | 37kW (50 HP) |
| Milling spindle motor speed | 80 – 220 min-1 |
| Number of CNC axes | 6 (FUNUC) |
| CNC programming | Auto programming on cam profile generating system |
| Work O.D. | φ40 – 105 mm |
|---|---|
| Work length | 750 – 2,500 mm |
| Work spindle motor output | 5.9kW |
| Work spindle motor speed | 1 – 180 min-1 |
Journal grinding wheel spindle motor output |
30kW |
Journal grinding wheel spindle motor speed |
Max. 2,100 rpm |
| Journal grinding speed | 45 m/sec |
| Journal grinding wheel size | φ750 – 500×W100 mm |
| Cam grinding wheel spindle motor output | 30kW (40HP) |
| Cam grinding wheel spindle motor speed | Max. 2,800 rpm |
| Cam grinding speed | 60 m/sec |
| Cam grinding wheel | 610 – 420×W 40 mm |
| Number of CNC axes | 6 (FUNUC) |
| CNC programming | Auto programming on cam profile generating system |
| Work O.D. | φ50 mm |
|---|---|
| Work length | 500 mm |
| Number of cam lobes | 8, 24 |
| Work spindle motor output (DD servo motor) | 3.7kW (5 HP) |
| Work spindle motor speed | Max. 400 rpm |
| Work spindle chuck | 6″ (φ150mm) hydraulic 3jaws |
| Polishing tool | Abrasive stick |
| Oscillation | Right and left, up and down |
| Tail stock center | MT4 |
Number of CNC axes |
6 (FANUC) |
Presenting each model of the newest machines and special-purpose machines under development |
||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||
 |
||||
